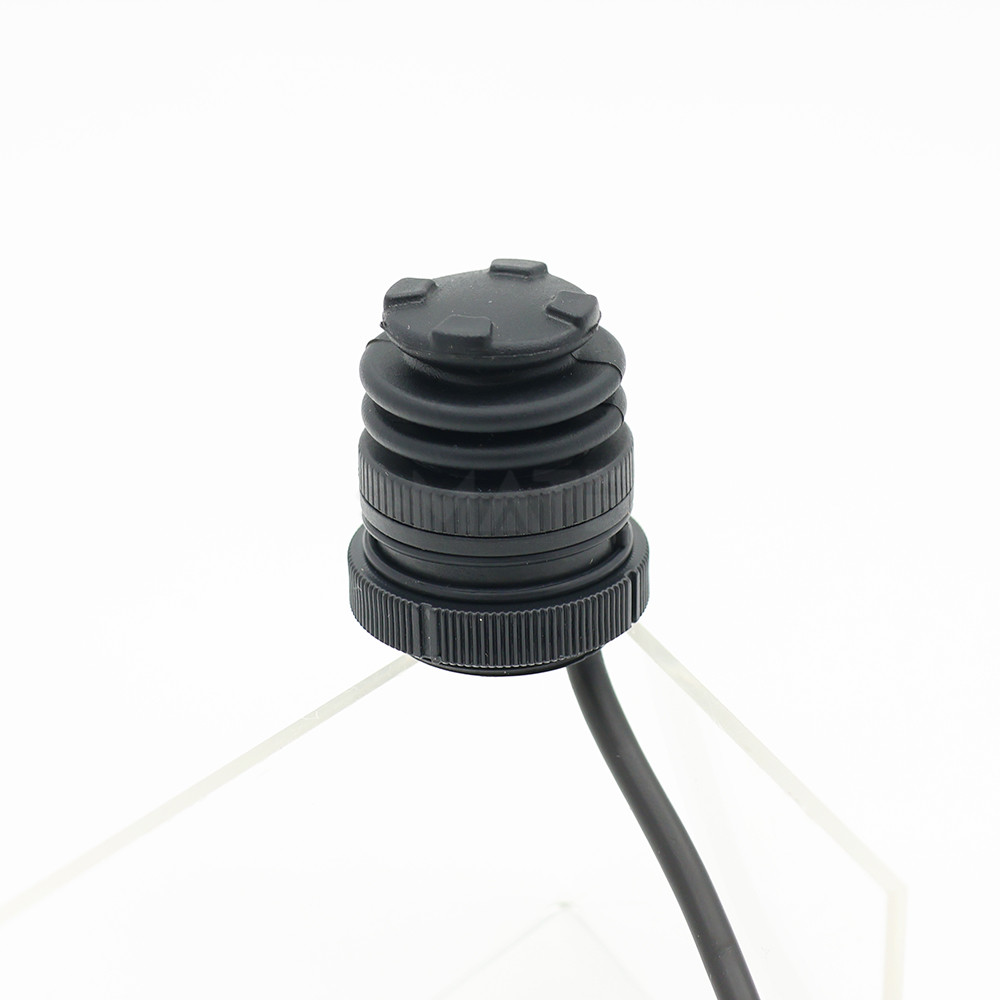

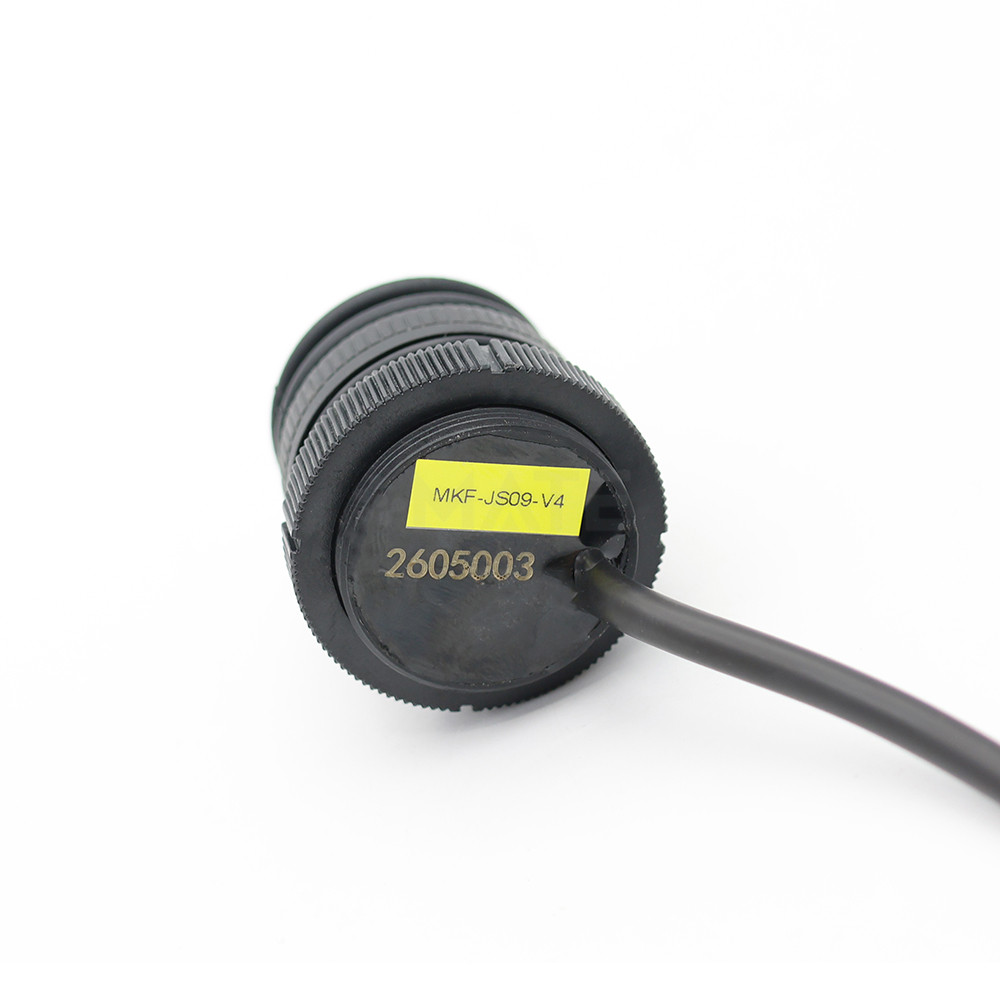

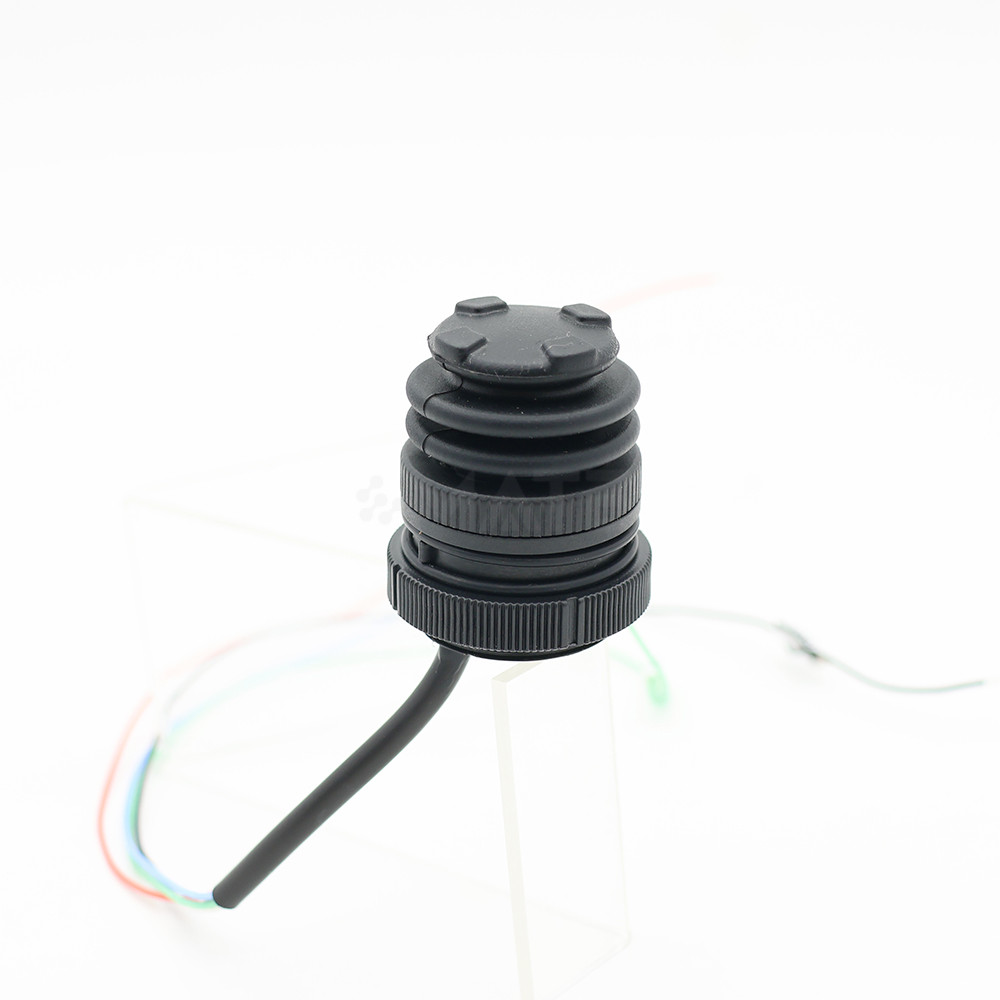

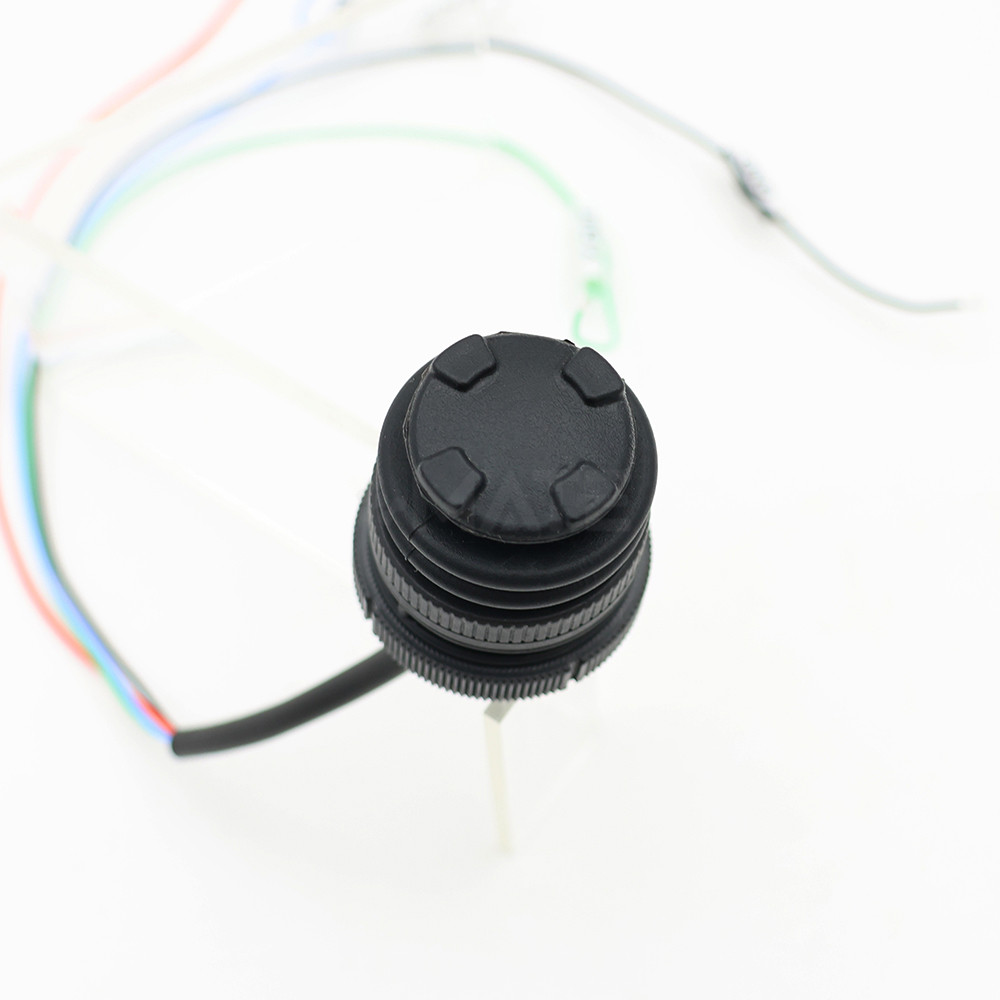

MKF-JS09-V4
Product Brief
This product is injection-molded and features a
thumb-operated, non-contact Hall sensing design. It is
rugged, lightweight, flexible, and easy to operate, with long
service life and excellent environmental protection. Thumb
operation enables physical signal output. An embedded
high-quality waterproof button on the top provides
customizable functionality. Multiple com munication output
options are available.
- Mechanical Specifications
1.1 Main Materials: Dupont 70G30, silicone
1.2 Weight: 30 g (max.)
1.3 Operating Force: 0 to 3 N; Max. allowable operating
force: 50 N
1.4 Control Range (X/Y Axis)：
18° ±2° from center position in any direction
2 Electrical Specifications
2.1 Input Voltage: 5 V DC; Current: ≤50 m A
2.2 Signal Output (X/Y Axis)：
Voltage: 0.5 ~ 4.5 V DC ±10%
Null Voltage (Center): 2.5 V DC
Tolerance: ±0.2 V DC
Output Impedance: 1 kΩ
2.3 Push Button (S1): Self-resetting, normally open, 100 m A
@ 5 V DC

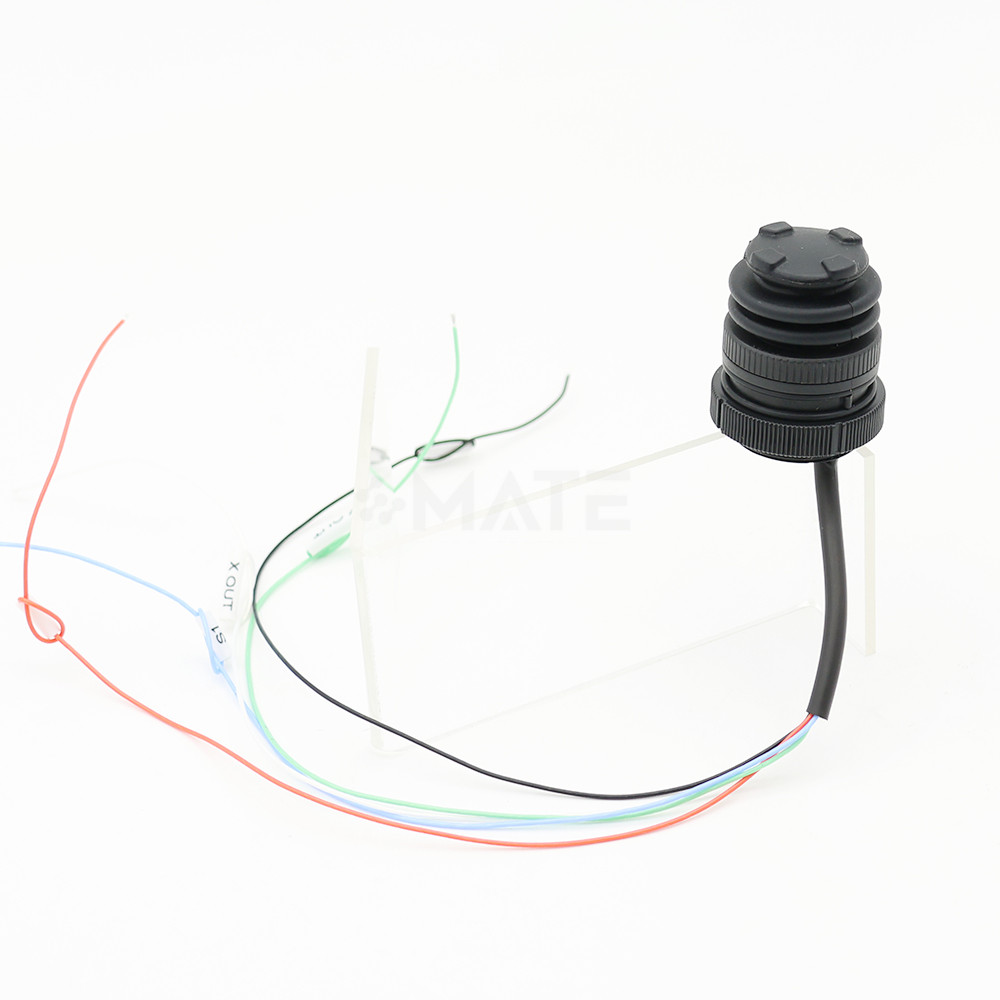

2.4 Cable: 0.12 m m² Teflon silver-plated copper wire
3.Ingress Protection Rating
Below mounting panel: IP67
Above mounting panel: IP65
4.Environmental Parameters
4.1 Operating Temperature: -40 °C to +70 °C
4.2 Storage Temperature: -45 °C to +75 °C
4.3 Special Temperature Range: Available upon request
