MKA-04-PBF Professional Black Electroplated Touchpad Panel Mounted

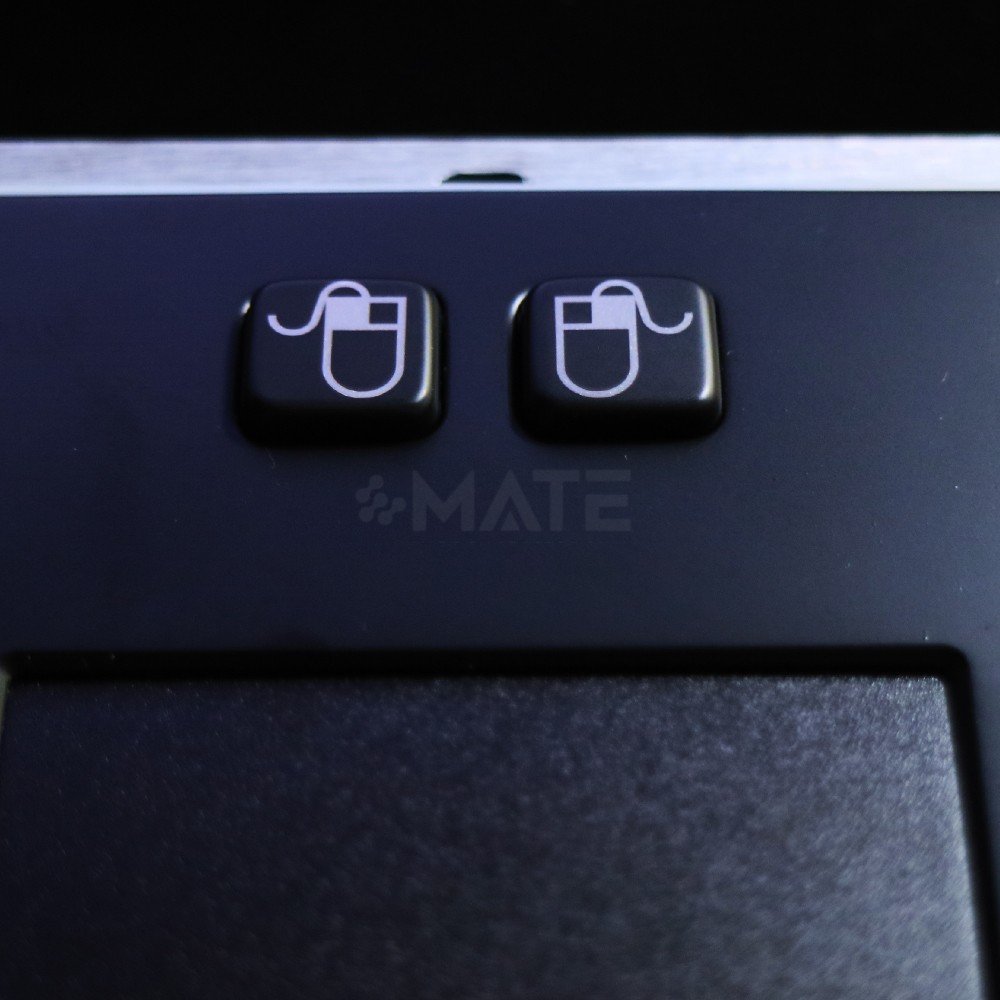

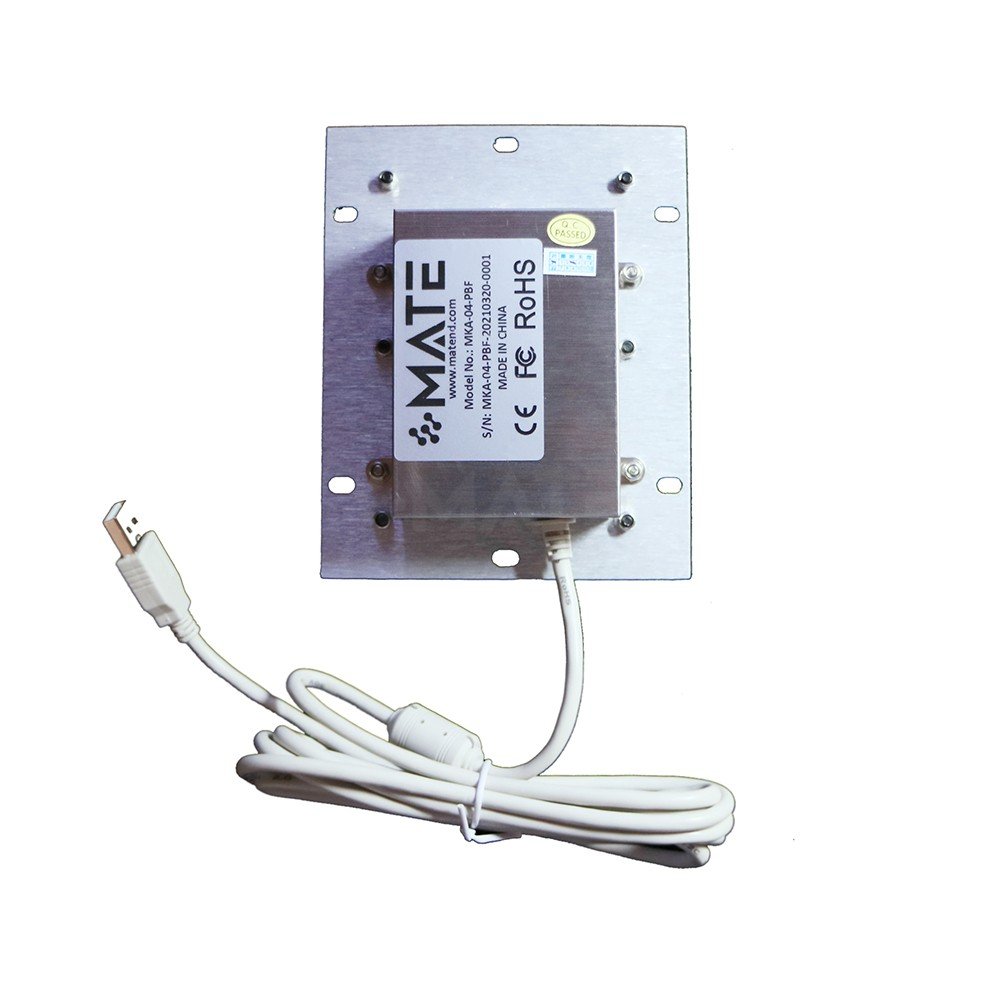

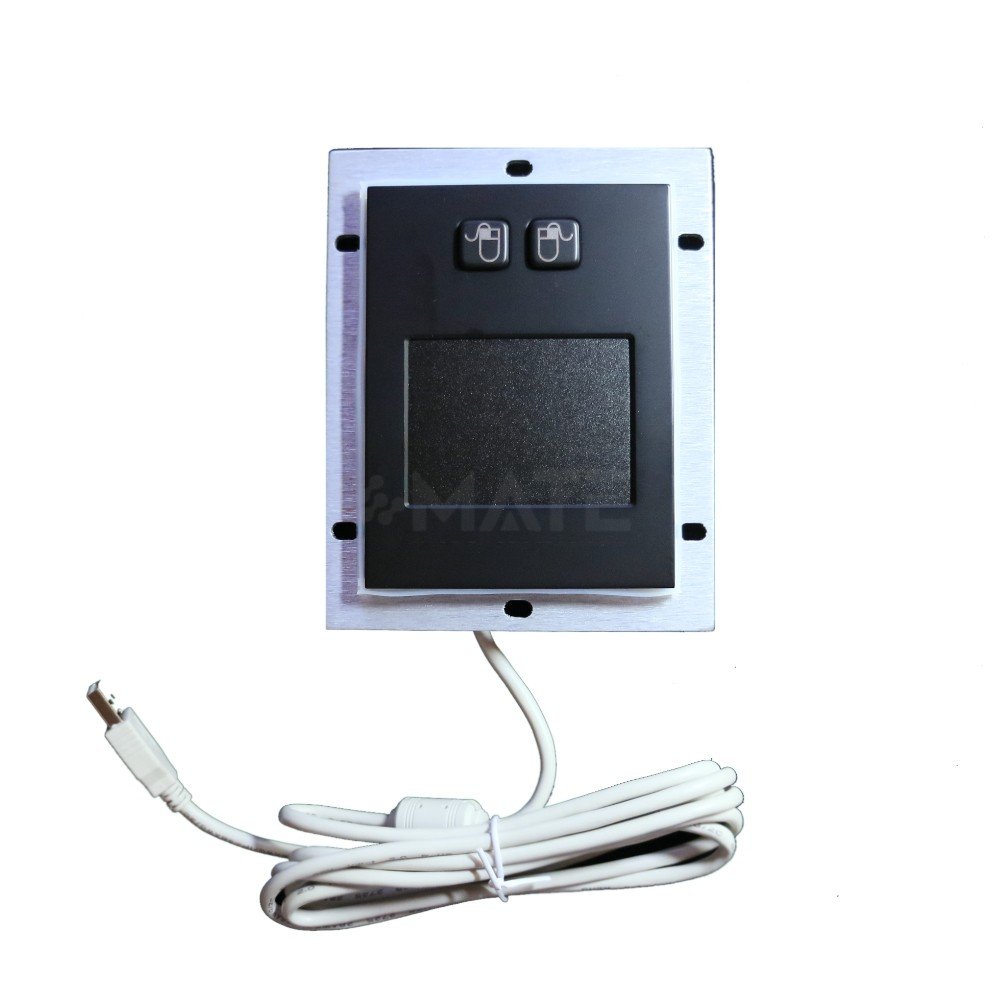

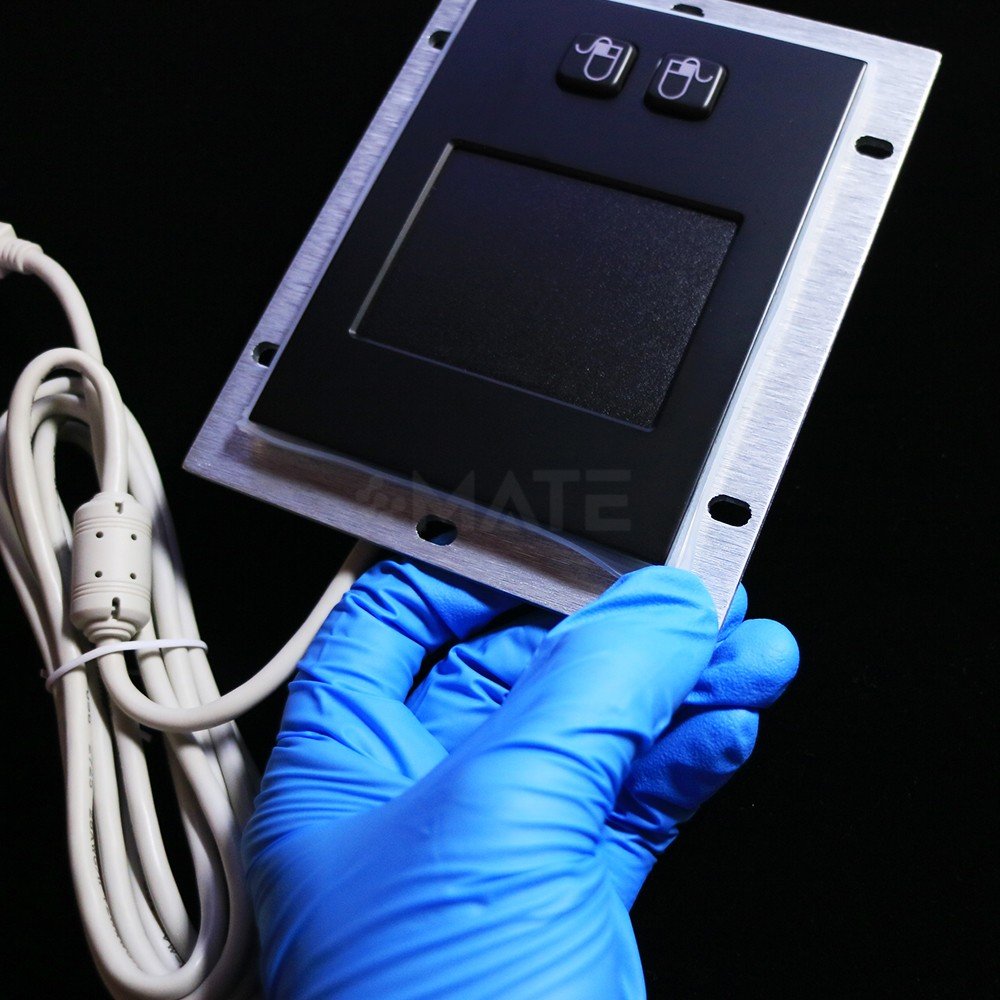

MKA-04-PBF is a professional industrial stainless steel touchpad in all black design. Fine quality SUS304 brushed top surface. Integrated with a touchpad for fast and accurate cursor position. USB plug and play. Panel mount version with mounting holes around.

Enquire Price

Categories: ,
Specification
Material FRONT PANEL: 304 stainless steel, BACK PANEL: aluminum
Power Supply 5v DC +/-5%
Current 4 mA (normal)
Touch area 62.5 x 46.5 mm
X/Y Resolution 1000 points/inch (40 points/mm)
Interface PS2 or USB
EMC Standard EN 55032:2015 , EN 55035:2017
Temperature Range Operating: -20°C to +55°C, Storage: -30°C to +60°C
Lifespan >10 million actuation
Warranty 1 year
Dimensions 83.0 x 110.0 mm (Front panel)
Certification CE/FCC/ RoHS/IP65
