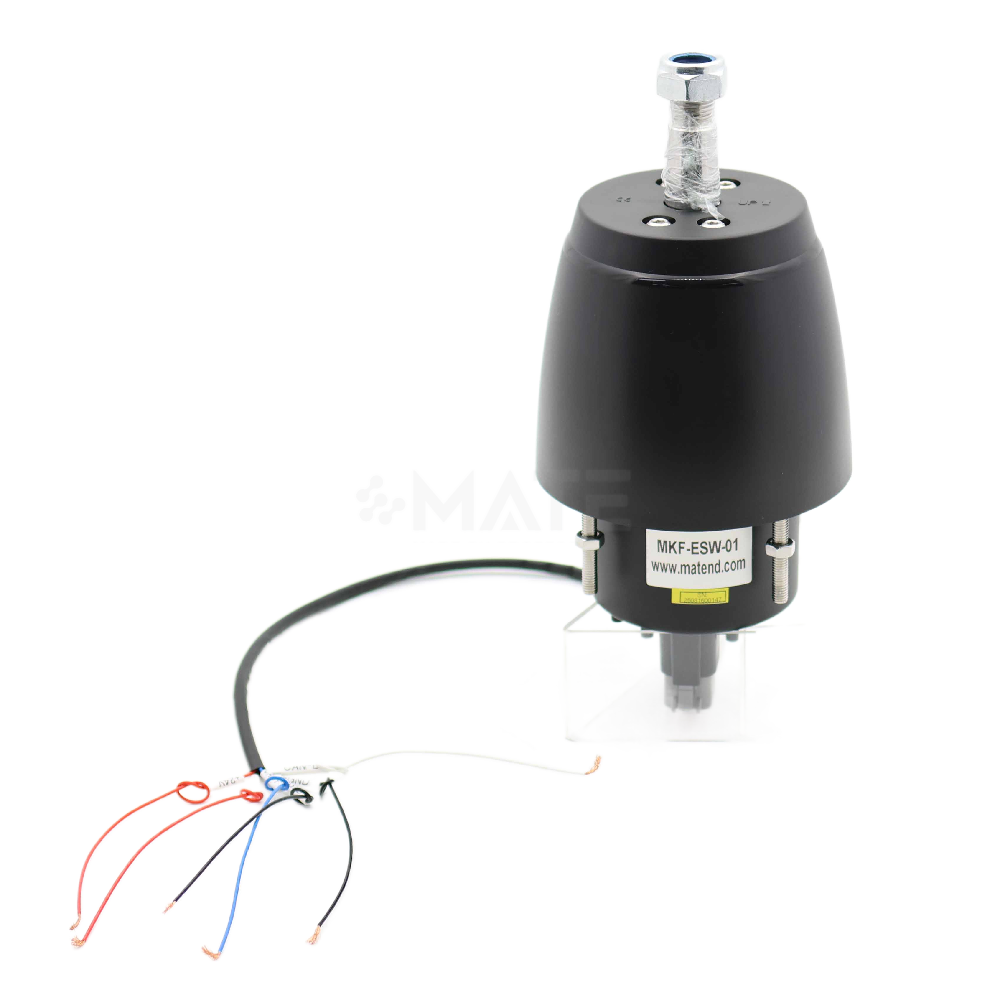

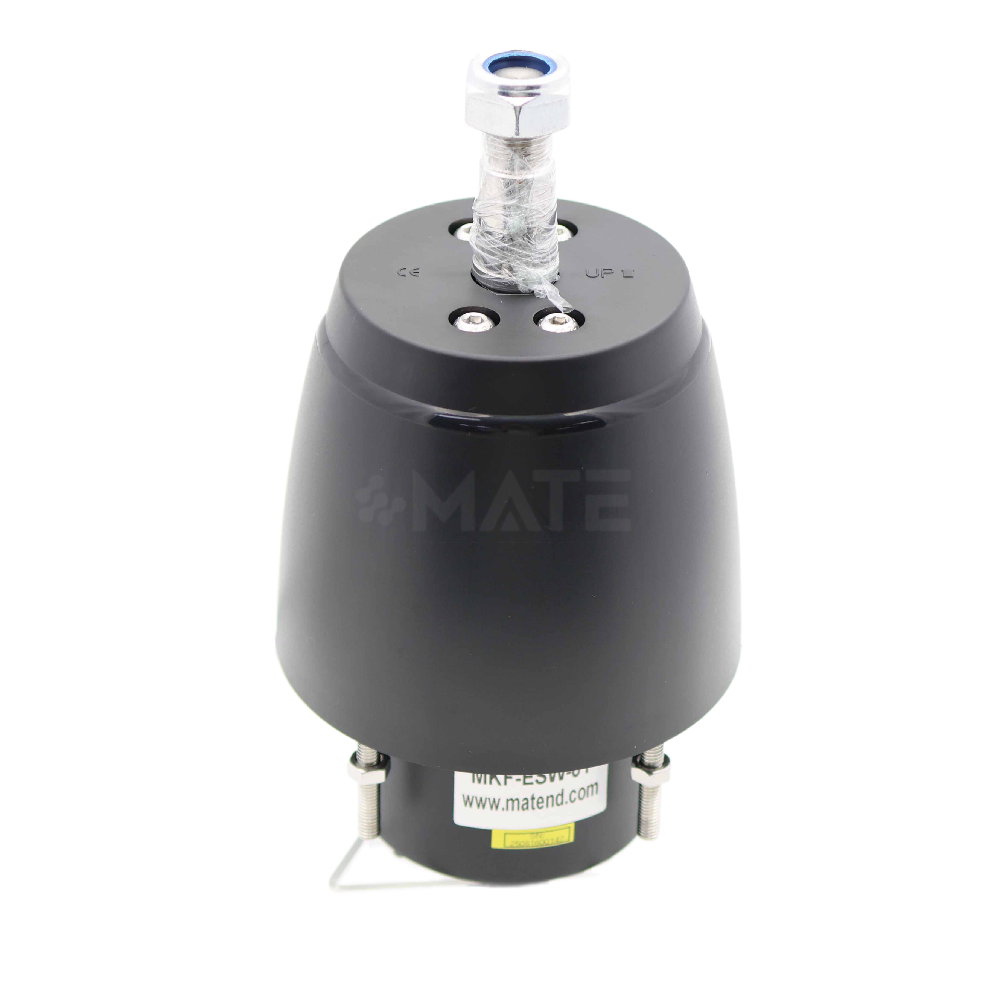

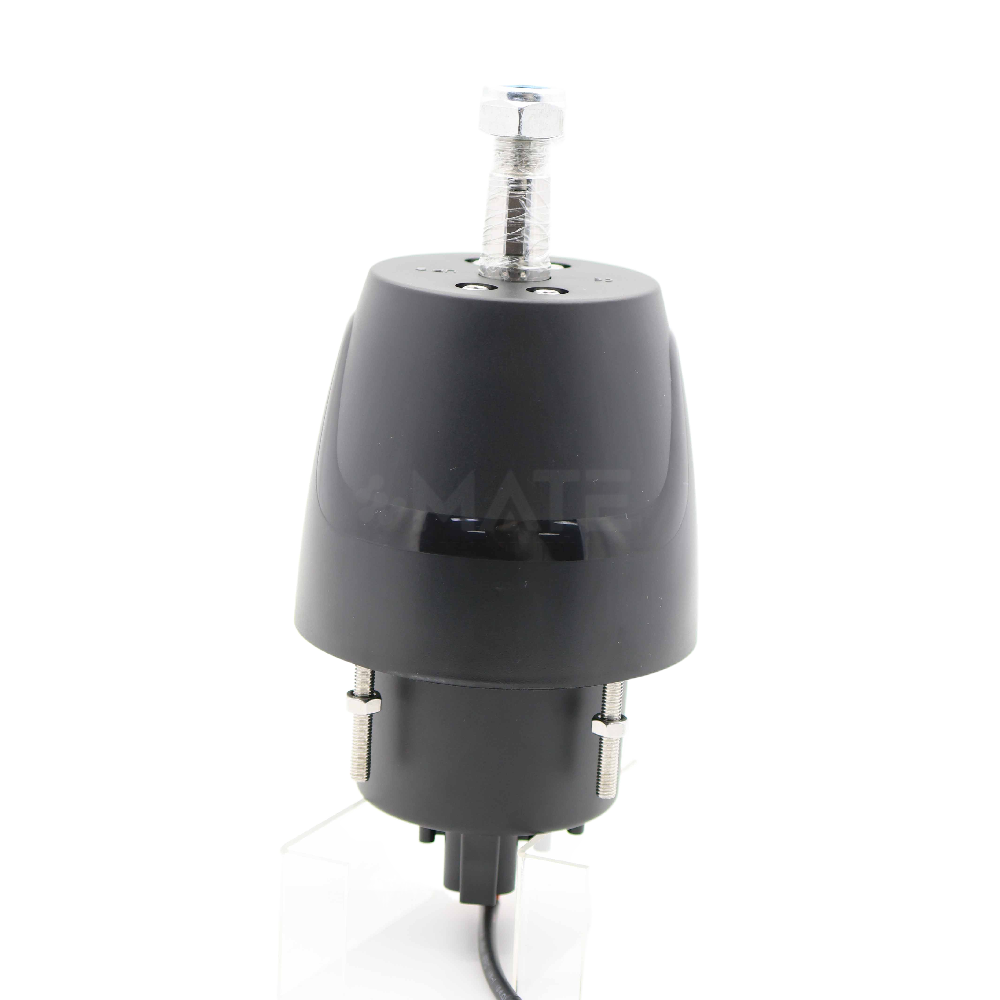

MKF-ESW-01
MKF-ESW-01 is a professional electronic power steering rudder designed specifically for the marine environment.
The electronic steering rudder fits seamlessly into the instrument panel. It is fully plug-and-play with
CAN-compatible ship control systems. Fully customizable software maximizes comfort and performance in every
installation, whether on board a marine or industrial application.
FEATURES
Friction resistance positioning
Adjustable steering resistance with speed
Programmable rotation angle
Programmable number of turns
Automatically locks to the set number of turns and angles
Automatic detection of 12VDC or 24VDC power supply
Features dual redundant, non-contact magneto resistive rotation sensors
Standard fault-tolerant CAN bus output
Proprietary protocols can be selected based on customer requirements
Works with hydraulic steering pump to minimize power consumption
Standard steering wheel installation dimensions
Rugged and durable electronic steering device
Double angular contact bearings with greater side load capacity
