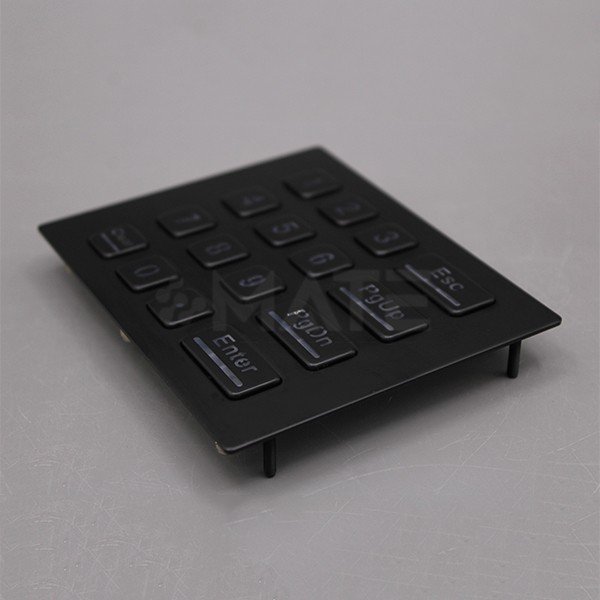

MKA-16-NLBF Professional Industrial Keypad with 16 Keys with Backlight

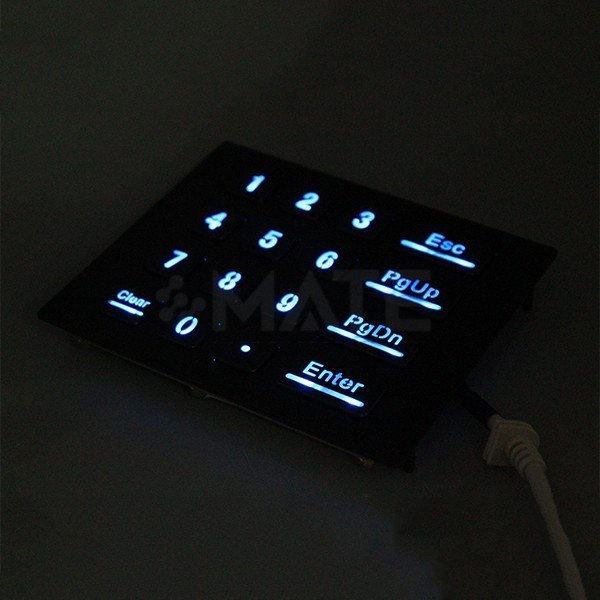

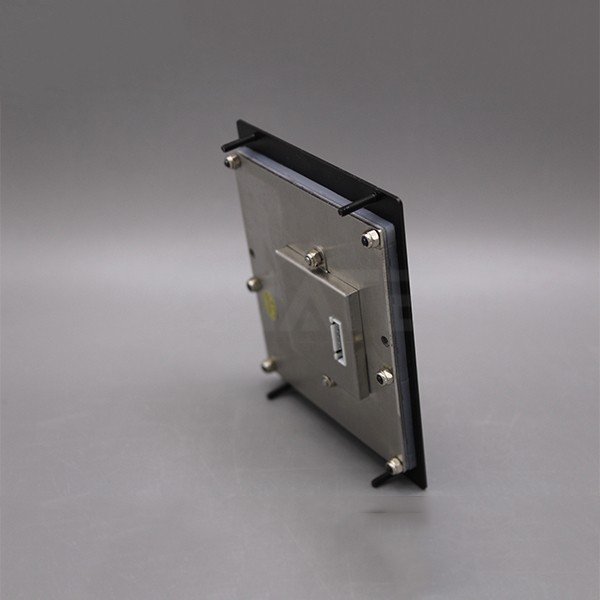

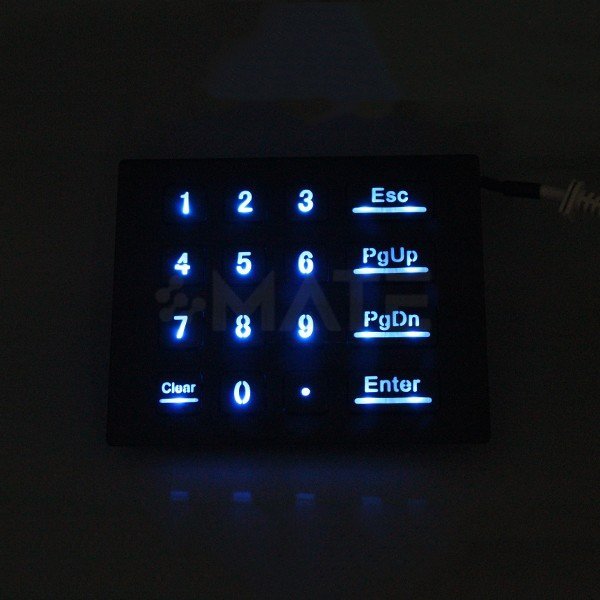

MKA-16-NLBF is a professional industrial stainless steel keypad with 16 keys included. Backlight version which is perfect for dim working environment can be designed into multiple colors. SUS304 fine quality stainless steel with black electroplated on the top surface and keys. Panel mount version with threaded bolts on the back. Custom layout available. USB/PS2/RS232 available. It’s perfect for kiosk, bank, terminal, open area, access control etc.

Enquire Price

    Specification
    Number of keys 12
    Key Switch Metal dome switch technology
    Switching cycles more than 5 million actuation
    Material FRONT PANEL: 304 stainless steel  BACK PANEL: aluminium
    Power Supply 5v DC +/-5%
    Interface PS2/USB
    EMC Standard EN 55032:2015 , EN 55035:2017
    Temperature Range Operating: -20°C to +55°C, Storage: -30°C to +60°C
    Compatibility All Windows, Linux, Mac
    Warranty 1 year
    Certification CE/FCC/ RoHS/IP65/IK09
    Dimensions 116.0 x 95.0 mm (Front panel)
    Weight 0.8kg
